03 / Compact heat exchange layout
V-type units for large
capacities on a small footprint

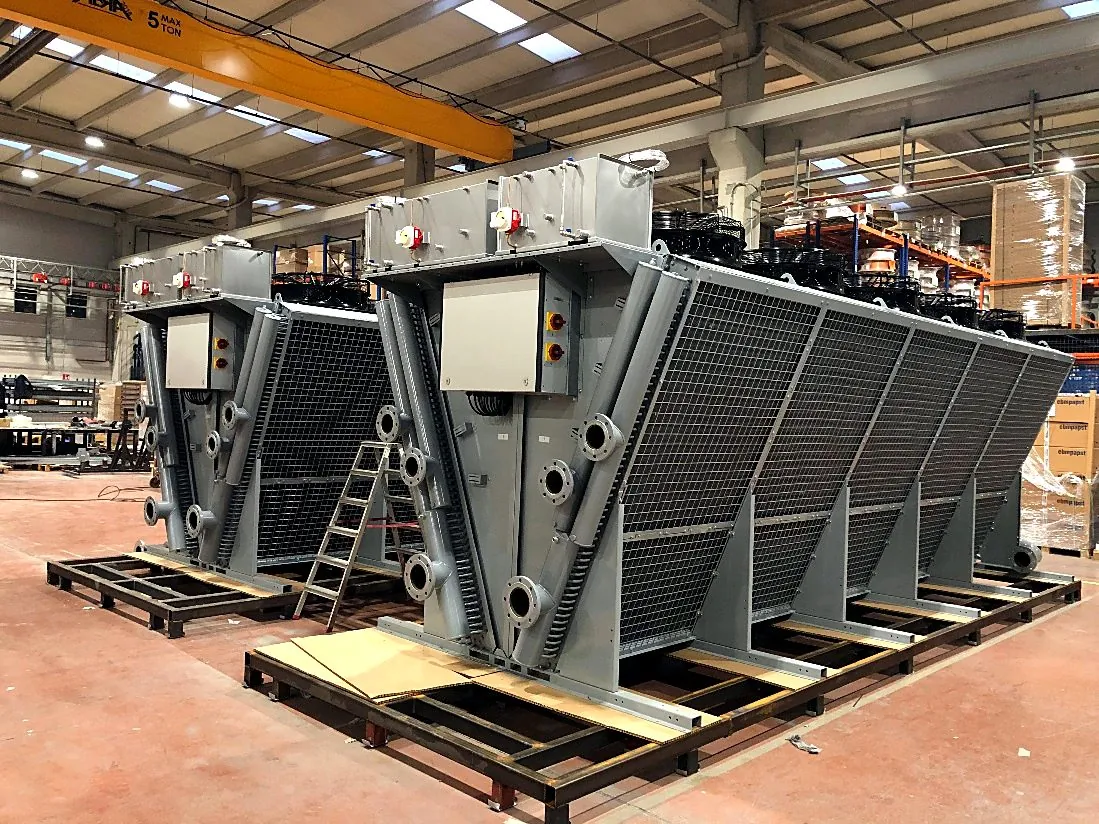

V-type dry coolers and radiators combine two inclined coils under a common row of top-mounted fans. The arrangement carries large capacities on a short footprint and suits power plants, data centres and chiller economiser circuits where many units stand side by side.
- Single-circuit or LT/HT V-type units with the coil angle, fan diameter and fan count chosen for the duty and the sound limit.
- Common frame with lifting points, pipework and junction boxes prepared for fast site installation.
- EC fans with speed control for part-load operation and low night-time sound levels.
- Materials and coatings for coastal, desert and industrial atmospheres.
ApplicationsPower PlantsData CentersChiller Economisers
Request a design Engineering
Technical overview
- Arrangement
- V-type, top-mounted induced-draught fans
- Circuits
- Single circuit or LT/HT
- Fans
- EC / AC axial fans
- Capacity
- Multi-unit arrangements for MW-class plants
- Materials
- Cu/Al, AlMg2.5, epoxy coating, galvanised or painted casing
- Options
- Speed control, expansion tank, control panel, protection guards
