04 / Engine-driven cooling
Mechanical radiators driven
by the engine itself

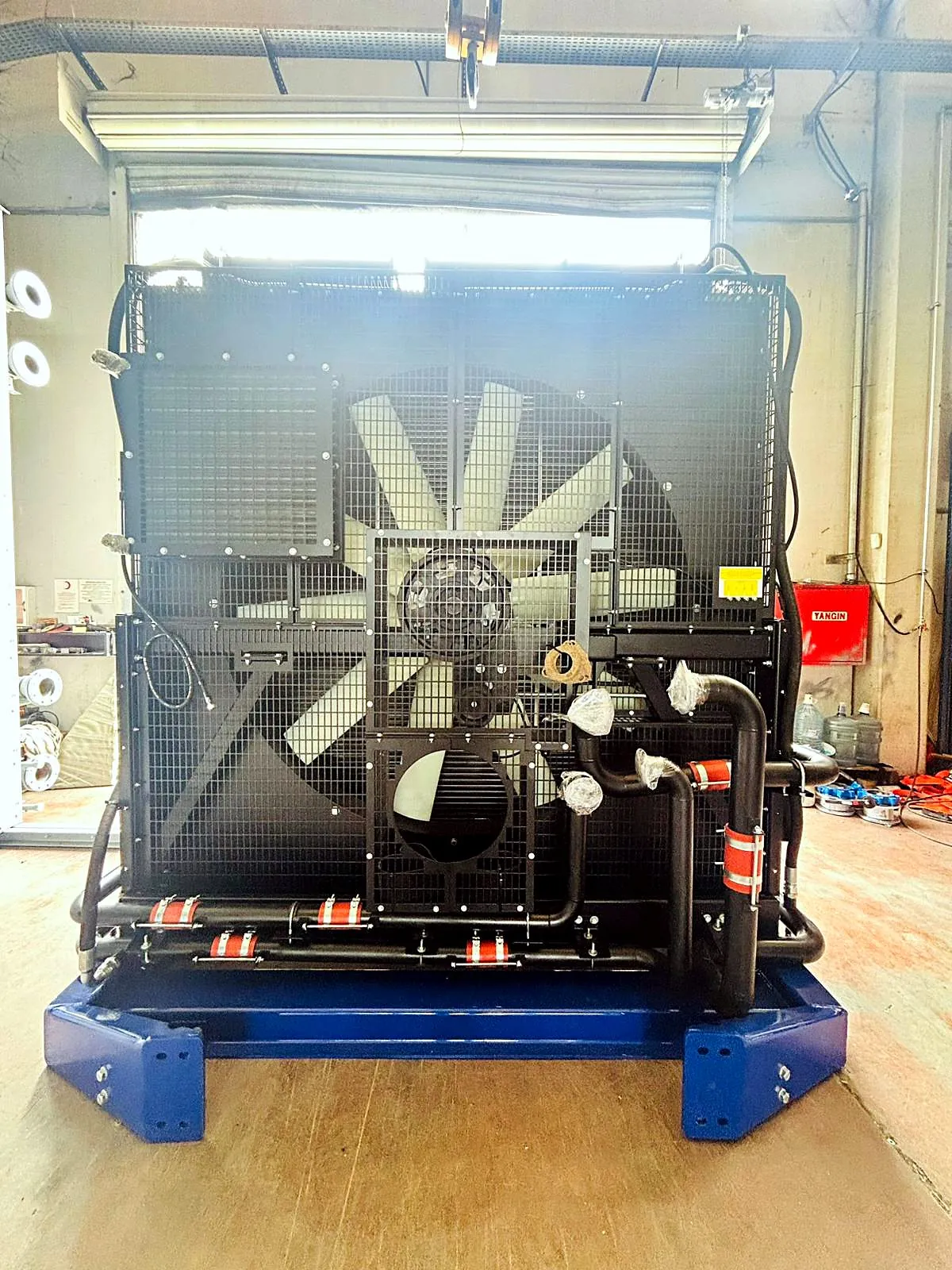

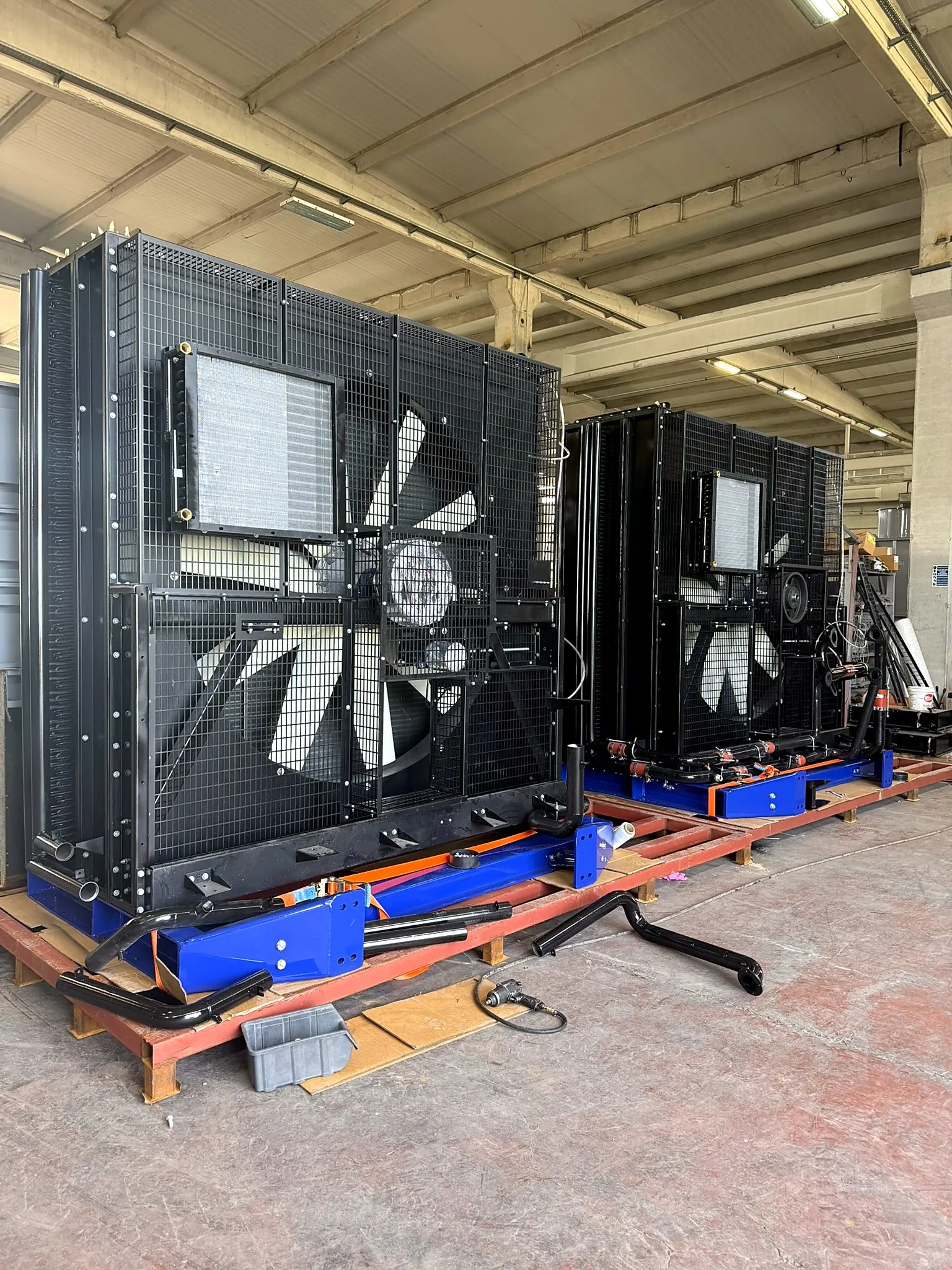

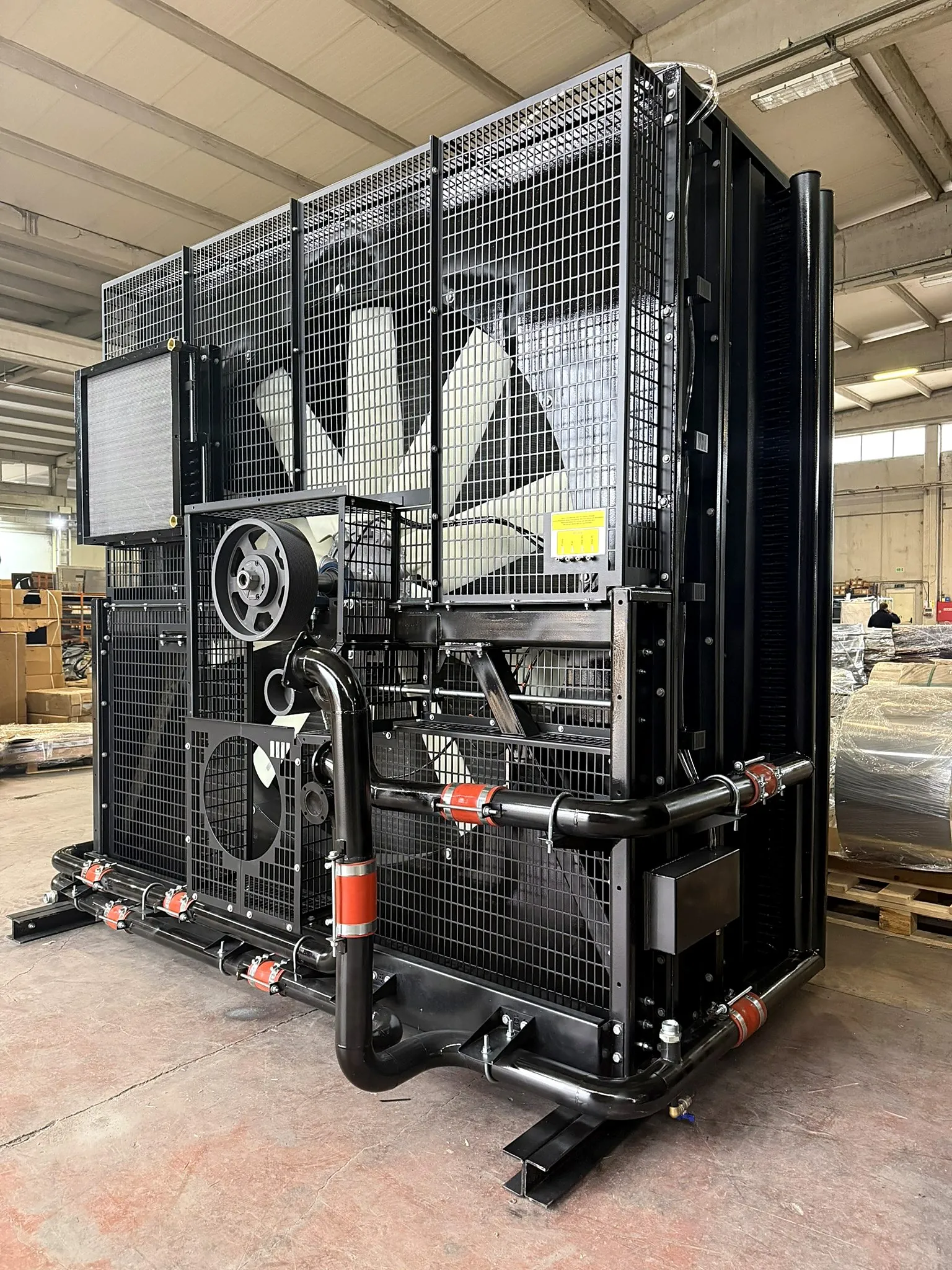

Mechanical driven radiators take their fan power from the engine crankshaft through a belt drive or a shaft. They are the compact, self-contained cooling solution for generator sets where no electric fan power is wanted and the radiator sits in front of the engine.
- Single-circuit and LT/HT radiator packages with fan, fan drive, guards, frame and pipework built around the engine interfaces.
- Fan diameter, blade angle and speed matched to the engine fan-drive power and the airflow restriction of the installation.
- Charge-air cooler, oil cooler and fuel cooler sections integrated into the same core where the engine needs them.
- Designed for the engine manufacturer's coolant flow, heat rejection and allowable pressure drop at the site ambient.
ApplicationsPower Generation
Request a design Engineering
Technical overview
- Arrangement
- Vertical core, engine-driven fan
- Circuits
- Single circuit, LT/HT, with CAC / oil sections
- Drive
- Belt drive or shaft drive from the engine
- Fans
- Axial fans, pusher or puller
- Materials
- Cu/Al, AlMg2.5, epoxy coating, painted frame
- Options
- Expansion tank, level switch, fan guards, flexible connections
